Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

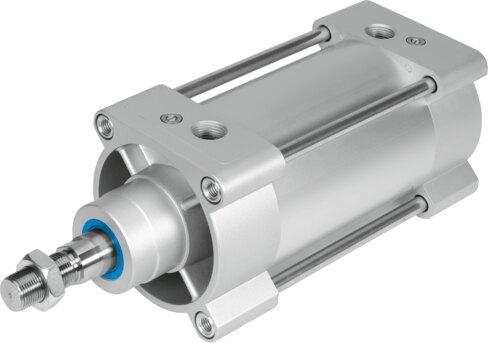

Reference imageConfirm configuration by manufacturer part number.
Festo
2045493
ISO cylinder DSBG-...-125- -
The Festo 2045493 is an industrial component adhering to the ISO 15552 standard featuring a 125 mm piston diameter and a variable stroke ranging from 1 mm to 2800 mm. Its structural design comprises a piston, piston rod, tie rod 1, and cylinder barrel, supporting any mounting position and position sensing via proximity switch. Cushioning options include elastic cushioning rings or pads at both ends, self-adjusting pneumatic end-position cushioning, or adjustable pneumatic cushioning at both ends, alongside piston rod thread configurations of M16, M16x1.5, M20, M20x1.5, M24, M27, or M27x2 with external or internal thread ends. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2045493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2045493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2 | M27 | M24 | M20x1.5 | M20 | M16x1.5 | M16
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | Protective bellows on the bearing cap | Hard scraper | Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Internal thread on piston rod | Piston rod with external hexagon | Low friction for balancer applications | Metal scraper | Module for reaching a specic end position in case of a pressure failure | Reinforced piston rod | Uniform, slow movement | Low friction | Through, hollow piston rod | Variable stud length | Temperature range 0 to + 150°C | Temperature range -40 to 80°C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2045493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
