Festo
2065

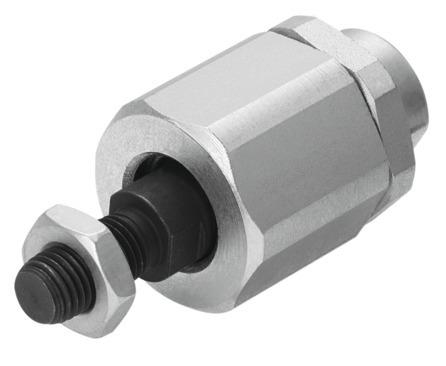

Self-aligning rod coupler FK-M16
The Festo part number 2065 is an industrial component featuring an M16 size and a product weight of 706 g, with RoHS compliant materials including a galvanized steel bushing, galvanized steel housing, case-hardened steel ball pin, case-hardened steel spherical washer, and a galvanized steel nut. This assembly provides a corrosion resistance class of CRC 2 for moderate corrosion stress and operates within an ambient temperature range of -40 °C to 150 °C, adhering to VDMA24364-B2-L LABS conformity. For Li-ion battery manufacturing suitability, metals containing over 1% copper by mass, circuit boards, lines, electrical push-in connectors, and coils are excluded from use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2065
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2065.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M16
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 706 g
- Note on materials
- RoHS compliant
- Bushing material
- Galvanized steel
- Housing material
- Steel, galvanized
- Ball pin material
- Case-hardened steel
- Spherical washer material
- Case-hardened steel
- Nut material
- Steel, galvanized
