Festo
2078790

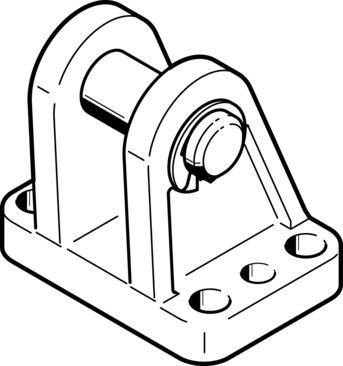

Clevis foot LBG-32-R3
Engineered by Festo, part number 2078790 is an industrial component with a size of 32, a maximum load capacity of 0.9 kN, and a product weight of 220 g that supports any mounting position. Constructed with high-alloy stainless steel mounting, bolt, and fuse materials, it features a CRC 3 rating for high corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS compliant materials functioning within an ambient temperature range of -40 °C to 150 °C. The component complies with Li-ion battery production suitability rules by excluding specified metals over 5% by mass of copper, zinc, or nickel, subject to standard exceptions for steel-bound nickel, nickel-plated surfaces, PCBs, cables, connectors, and coils. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2078790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2078790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 0.9 kN
- Product weight
- 220 g
- Note on materials
- RoHS compliant
- Mounting material
- high-alloy stainless steel
- Bolt material
- high-alloy stainless steel
- Fuse material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2078790. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
