Festo
2082445

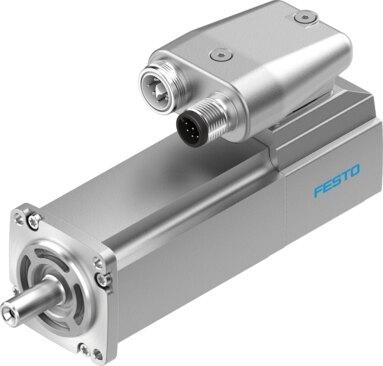

Servo motor EMME-AS-40-M-LV-AM
The Festo industrial component, part number 2082445, features a nominal operating voltage of 360 V DC, a star inside winding switch, two pole pairs, a stall torque of 0.35 Nm, and a nominal torque of 0.21 Nm. Conforming to IEC 60034 with an IP21 degree of protection and insulation class F, this unit operates within an ambient temperature range of -10 °C to 40 °C and relative air humidity from 0 to 90%. It holds c UL us recognition, RCM compliance, and bears CE, UKCA, and RoHS markings alongside a CRC rating of 0 and VDMA24364 zone III LABS conformity. Submit part number 2082445, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2082445
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2082445.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 360 V
- DC nominal voltage
- 360 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 2
- Stall torque
- 0.35 Nm
- Nominal torque
- 0.21 Nm
- Peak torque
- 1.4 Nm
- Nominal rotary speed
- 9000 rpm
- Max. rotational speed
- 10000 rpm
- Motor nominal power
- 200 W
- Continuous stall current
- 1.6 A
- Motor nominal current
- 1.2 A
- Peak current
- 6.4 A
- Motor constants
- 0.175 Nm/A
