Festo
2089701

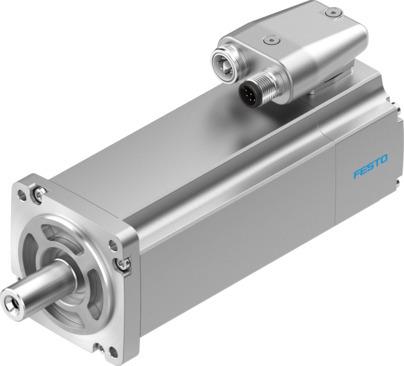

Servo motor EMME-AS-60-S-LS-AMB
The Festo 2089701 industrial component operates on a nominal DC voltage of 360 V utilizing a star-inside winding switch with 3 pole pairs, delivering a stall torque of 0.7 Nm and a nominal torque of 0.6 Nm. It conforms to IEC 60034 standards with an insulation protection class F, an S1 rating class according to EN 60034-1, and an IP21 degree of protection, while functioning within an ambient temperature range of -10 °C to 40 °C and 0 to 90 % relative air humidity. Certified with RCM compliance and c UL us recognition, this RoHS-compliant unit features a plug electrical connection, CRC 0 corrosion resistance, and VDMA24364 zone III LABS conformity, alongside CE and UKCA markings for EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2089701
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2089701.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 360 V
- DC nominal voltage
- 360 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 0.7 Nm
- Nominal torque
- 0.6 Nm
- Peak torque
- 2.8 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 5131 rpm
- Motor nominal power
- 190 W
- Continuous stall current
- 0.9 A
- Motor nominal current
- 0.8 A
- Peak current
- 3.6 A
- Motor constants
- 0.75 Nm/A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2089701. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
