Festo
2089731

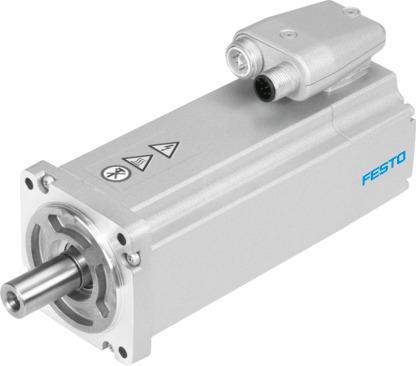

Servo motor EMME-AS-60-M-LS-AM
The Festo part number 2089731 is an industrial component featuring a nominal operating voltage of 360 V DC, a star inside winding switch, 3 pole pairs, a stall torque of 1.5 Nm, and a nominal torque of 1.2 Nm. Built to conform to IEC 60034 with insulation protection class F and an IP21 degree of protection, it operates within an ambient temperature range of -10 °C to 40 °C and a storage temperature range of -20 °C to 70 °C at 0 to 90 percent relative air humidity. It carries an S1 rating class per EN 60034-1, features a plug electrical connection technology, exhibits a corrosion resistance class of CRC 0, and complies with RoHS, VDMA24364 zone III LABS conformity, RCM, c UL us, CE, and UKCA directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2089731
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2089731.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 360 V
- DC nominal voltage
- 360 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 1.5 Nm
- Nominal torque
- 1.2 Nm
- Peak torque
- 6 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4925 rpm
- Motor nominal power
- 380 W
- Continuous stall current
- 1.8 A
- Motor nominal current
- 1.5 A
- Peak current
- 7.2 A
- Motor constants
- 0.8 Nm/A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2089731. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
