Festo
2089732

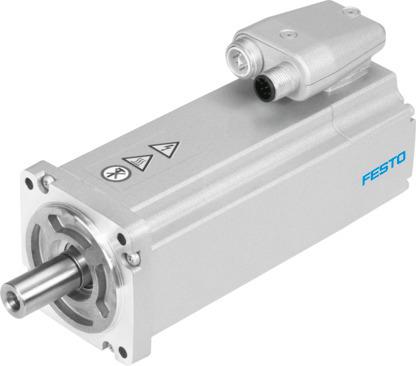

Servo motor EMME-AS-60-M-LS-ASB
The Festo part number 2089732 is an industrial component featuring a 360 V DC nominal voltage, a star inside winding switch, 3 pole pairs, 1.5 Nm stall torque, and 1.2 Nm nominal torque with plug electrical connection technology. This unit conforms to IEC 60034 with an S1 rating class, insulation protection class F, IP21 degree of protection, 0 - No corrosion stress CRC, VDMA24364 zone III LABS conformity, and RoHS compliance. It operates in ambient temperatures from -10 °C to 40 °C, storage temperatures from -20 °C to 70 °C, and 0 to 90 percent relative air humidity, backed by RCM compliance, c UL us recognition, alongside CE and UKCA markings for EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2089732
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2089732.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 360 V
- DC nominal voltage
- 360 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 1.5 Nm
- Nominal torque
- 1.2 Nm
- Peak torque
- 6 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4925 rpm
- Motor nominal power
- 380 W
- Continuous stall current
- 1.8 A
- Motor nominal current
- 1.5 A
- Peak current
- 7.2 A
- Motor constants
- 0.8 Nm/A
