2093101

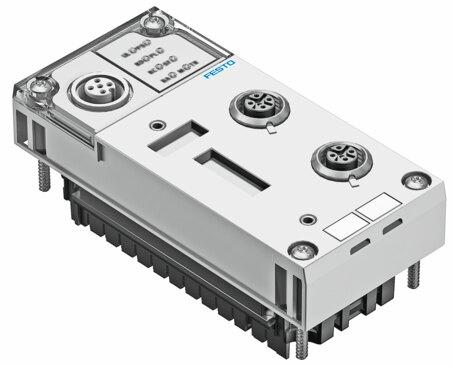

Name: Festo 2093101 Bus node CPX-FB39
Brand: Festo

Bus node CPX-FB39

The Festo industrial component, part number 2093101, is a Sercos III device featuring a reinforced polyamide housing measuring 50 mm by 107 mm by 50 mm including the interlinking block, with an assembled weight of 125 g. It operates within an ambient temperature range of -5 °C to 50 °C, supports IP65 and IP67 degrees of protection, and maintains a CRC rating of 1 with RoHS compliance. Featuring dual M12x1 D-coded fieldbus sockets, 64-byte input and output address capacities, and a 100 Mbit/s baud rate, the unit includes comprehensive product-specific and bus-specific LED displays alongside DIL switch control elements. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2093101
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2093101.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: Sercos III
Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 50 mm
Product weight: 125 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Housing material: PA-reinforced
LED display (product-specic): M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
LED display (bus-specic): S: Sercos LED | SD: Sercos sub-device LED | TP1: Network active port 1 | TP2: Network active port 2
Device-specic diagnostics: Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
Control elements: DIL switch
Fieldbus interface: 2x socket, M12x1, 4-pin, D-coded
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior | Fallback A data | forcing of channels | Signal setup | System Parameters
Baud rate: 100 Mbit/s, full/half duplex
Conguration support: SDDML le
Additional functions: Acyclic and cyclic data access via sercos | IP addressing via Sercos parameters or operator unit

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2093101. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
