Festo
2093137

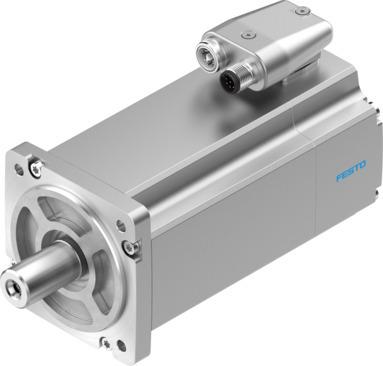

Servo motor EMME-AS-80-S-HS-AM
Manufactured by Festo under part number 2093137, this industrial component operates at a 565 V DC nominal voltage with a star inside winding switch and 3 pole pairs. It delivers a stall torque of 2.8 Nm and a nominal torque of 2.3 Nm under an S1 rating class according to EN 60034-1, conforming to IEC 60034 with an IP21 degree of protection and class F insulation. The unit features a plug electrical connection technology, a corrosion resistance class of CRC 0, VDMA24364 zone III LABS conformity, RoHS-compliant materials, and functions within ambient temperatures from -10 °C to 40 °C and relative air humidity up to 90%. Certifications and markings include c UL us - Recognized (OL), RCM compliance, and adherence to EU and UK directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2093137
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2093137.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 565 V
- DC nominal voltage
- 565 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 2.8 Nm
- Nominal torque
- 2.3 Nm
- Peak torque
- 11.2 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4192 rpm
- Motor nominal power
- 720 W
- Continuous stall current
- 1.8 A
- Motor nominal current
- 1.6 A
- Peak current
- 7.2 A
- Motor constants
- 1.438 Nm/A
