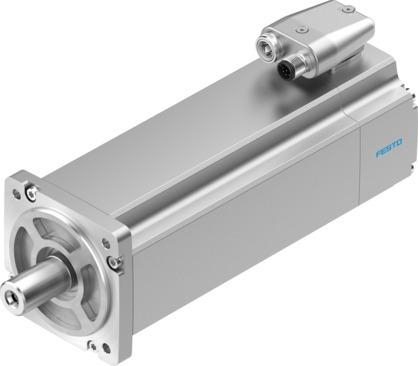

Reference imageConfirm configuration by manufacturer part number.
Festo
2093202
Servo motor EMME-AS-80-M-HS-ASB
The Festo 2093202 industrial component is a 3-pole-pair unit featuring a 565 V DC nominal operating voltage, star inside winding switch, 3.5 Nm stall torque, and 3.2 Nm nominal torque. Built to IEC 60034 standards with an IP21 degree of protection, insulation class F, and S1 rating class, it operates within an ambient temperature range of -10 °C to 40 °C and relative air humidity up to 90%. This RoHS-compliant part holds c UL us recognition, RCM compliance, and bears CE and UKCA markings for EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2093202
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2093202.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 565 V
- DC nominal voltage
- 565 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 3.5 Nm
- Nominal torque
- 3.2 Nm
- Peak torque
- 14 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4097 rpm
- Motor nominal power
- 1000 W
- Continuous stall current
- 2.2 A
- Motor nominal current
- 2.1 A
- Peak current
- 8.8 A
- Motor constants
- 1.524 Nm/A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2093202. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
