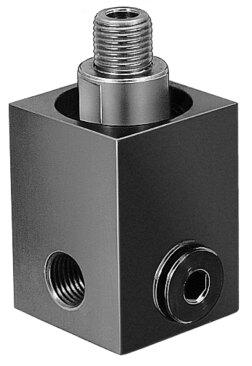

Reference imageConfirm configuration by manufacturer part number.
Festo
2094
Rotary distributor GF-1/4
The Festo 2094 is an industrial component featuring an 11.5 mm nominal width, an external thread G1/4 pneumatic connection 1, and an internal thread G1/4 pneumatic connection 2 housed in a wrought aluminum alloy body with a high-alloy steel shaft. Operating with compressed air conforming to ISO 8573-1:2010 [7:-:-], this 250 g unit supports a maximum rotational speed of 300 rpm, an operating pressure range of -0.95 bar to 10 bar (-13.775 psi to 145 psi), and a medium and ambient temperature range of -10 °C to 60 °C. It achieves a standard flow rate 1-2.1 (6->0) of 2932 l/min, a standard flow rate 1-2.X open (6->0) of 2977 l/min, and a standard nominal flow rate 1.1-2.1 of 1792 l/min, with oil lubrication permitted and required for continued operation. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2094
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2094.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11.5 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Standard ow rate 1-2.1 (6->0)
- 2932 l/min
- Standard ow rate 1-2.X open (6->0)
- 2977 l/min
- Standard nominal ow rate 1.1-2.1
- 1792 l/min
- Max. rotational speed
- 300 rpm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 250 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- Internal thread G1/4
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy
- Shaft material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2094. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
