Festo
2095359

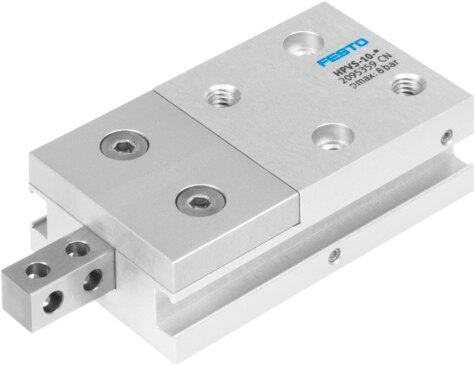

Feed separator HPVS-10-10-A
The Festo 2095359 is a double-acting industrial component featuring a 10 mm piston diameter and a 10 mm stroke, operating at pressures from 3 bar to 8 bar. Its structural design incorporates a piston rod with an anti-twist feature and a rectangular guide, maintaining a maximum interchangeability of 0.3 mm, a tappet play Sx of 0.05 mm, a tappet play Sz of 0.03 mm, and gripper jaw angular backlash values of 0.12 deg, 0.2 deg, and 0.262 deg. Position sensing is achieved via a proximity switch requiring a minimum product distance of 30 mm to 50 mm and a switch protrusion of 14 mm to 22 mm, with advancing and retracting times each ranging from 30 ms to 60 ms. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2095359
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2095359.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 10 mm
- Max. interchangeability
- 0.3 mm
- Max. tappet play Sx
- 0.05 mm
- Max. tappet play Sz
- 0.03 mm
- Max. gripper jaw angular backlash
- 0.12 deg
- Max. gripper jaw angular backlash ay
- 0.2 deg
- Max. gripper jaw angular backlash az
- 0.262 deg
- External nger mounting
- Through-hole
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston rod | Anti-twist feature
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Rectangular guide
- Minimum product distance due to proximity switches
- 30 mm...50 mm
- Proximity switch protrusion
- 14 mm...22 mm
- Operating pressure
- 3 bar...8 bar
- Advancing time
- 30 ms...60 ms
- Retracting time
- 30 ms...60 ms
- Repetition accuracy
- 0.05 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Max. tightening torque
- 1.2 Nm for M3 | 2.9 Nm for M4
- Max. force on nger Fz static
- 75 N
- Max. static moment Mr at nger
- 3 Nm
