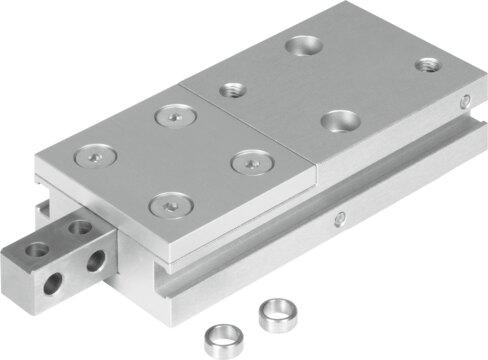

Name: Festo 2095361 Feed separator HPVS-14-40-A
Brand: Festo

Feed separator HPVS-14-40-A

The Festo part number 2095361 is a double-acting industrial component featuring a 14 mm piston diameter, a 40 mm stroke, and a piston rod with a rectangular guide anti-twist feature. It operates at a pressure range of 3 bar to 8 bar with advancing and retracting times from 50 ms to 130 ms, and incorporates position sensing via a proximity switch. Additional technical parameters include a maximum interchangeability of 0.3 mm, maximum tappet play Sx of 0.05 mm and Sz of 0.03 mm, and maximum gripper jaw angular backlash of 0.07 deg, ay of 0.12 deg, and az of 0.175 deg. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2095361
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2095361.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 40 mm
Piston diameter: 14 mm
Max. interchangeability: 0.3 mm
Max. tappet play Sx: 0.05 mm
Max. tappet play Sz: 0.03 mm
Max. gripper jaw angular backlash: 0.07 deg
Max. gripper jaw angular backlash ay: 0.12 deg
Max. gripper jaw angular backlash az: 0.175 deg
External nger mounting: Through-hole
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston rod | Anti-twist feature
Position sensing: Via proximity switch
Protection against torsion/guide: Rectangular guide
Minimum product distance due to proximity switches: 50 mm...90 mm
Proximity switch protrusion: 14 mm...22 mm
Operating pressure: 3 bar...8 bar
Advancing time: 50 ms...130 ms
Retracting time: 50 ms...130 ms
Repetition accuracy: 0.15 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: IP40
Ambient temperature: 5 °C...60 °C
Max. tightening torque: 2.9 Nm for M4 | 5.9 Nm for M5
Max. force on nger Fz static: 100 N
Max. static moment Mr at nger: 5 Nm
