Festo
2095362

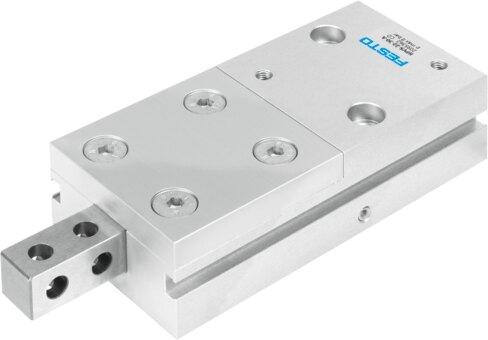

Feed separator HPVS-22-30-A
The Festo 2095362 is a double-acting industrial component featuring a 22 mm piston diameter, a 30 mm stroke, and a rectangular guide providing an anti-twist structural design with a piston rod. Operating within a pressure range of 3 bar to 8 bar, it delivers advancing and retracting times of 240 ms to 480 ms without cushioning, while supporting position sensing via proximity switch and through-hole external finger mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2095362
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2095362.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 30 mm
- Piston diameter
- 22 mm
- Max. interchangeability
- 0.3 mm
- Max. tappet play Sx
- 0.05 mm
- Max. tappet play Sz
- 0.03 mm
- Max. gripper jaw angular backlash
- 0.06 deg
- Max. gripper jaw angular backlash ay
- 0.11 deg
- Max. gripper jaw angular backlash az
- 0.12 deg
- External nger mounting
- Through-hole
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston rod | Anti-twist feature
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Rectangular guide
- Minimum product distance due to proximity switches
- 70 mm...120 mm
- Proximity switch protrusion
- 14 mm...22 mm
- Operating pressure
- 3 bar...8 bar
- Advancing time
- 240 ms...480 ms
- Retracting time
- 240 ms...480 ms
- Repetition accuracy
- 0.25 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Max. tightening torque
- 24 Nm for M8 | 9.9 Nm for M6
- Max. force on nger Fz static
- 180 N
- Max. static moment Mr at nger
- 9 Nm
