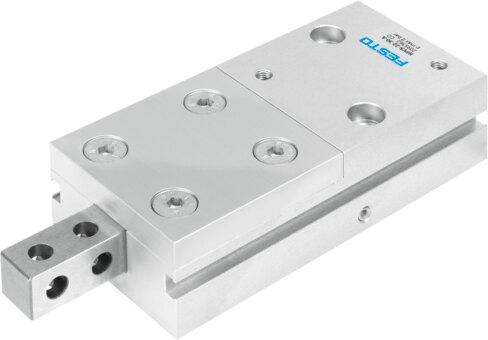

Reference imageConfirm configuration by manufacturer part number.
Festo
2095363
Feed separator HPVS-22-60-A
Engineered by Festo with part number 2095363, this double-acting industrial component features a 22 mm piston diameter and a 60 mm stroke operating at pressures from 3 bar to 8 bar. The structural design incorporates a piston rod with an anti-twist rectangular guide, achieving a maximum tappet play Sx of 0.05 mm, Sz of 0.03 mm, and an interchangeability of 0.3 mm. Position sensing is accomplished via a proximity switch requiring a product distance of 70 mm to 120 mm and a switch protrusion of 14 mm to 22 mm, while advancing and retracting times range from 480 ms to 960 ms with no cushioning. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2095363
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2095363.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 22 mm
- Max. interchangeability
- 0.3 mm
- Max. tappet play Sx
- 0.05 mm
- Max. tappet play Sz
- 0.03 mm
- Max. gripper jaw angular backlash
- 0.04 deg
- Max. gripper jaw angular backlash ay
- 0.07 deg
- Max. gripper jaw angular backlash az
- 0.12 deg
- External nger mounting
- Through-hole
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston rod | Anti-twist feature
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Rectangular guide
- Minimum product distance due to proximity switches
- 70 mm...120 mm
- Proximity switch protrusion
- 14 mm...22 mm
- Operating pressure
- 3 bar...8 bar
- Advancing time
- 480 ms...960 ms
- Retracting time
- 480 ms...960 ms
- Repetition accuracy
- 0.25 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Max. tightening torque
- 24 Nm for M8 | 9.9 Nm for M6
- Max. force on nger Fz static
- 180 N
- Max. static moment Mr at nger
- 9 Nm
