Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

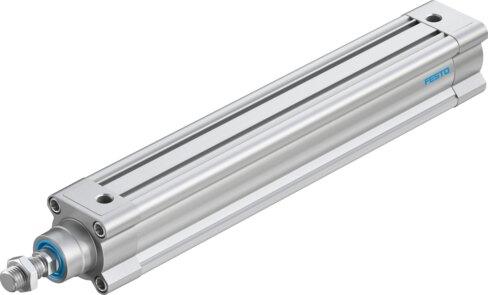

Reference imageConfirm configuration by manufacturer part number.
Festo
2098975
ISO cylinder DSBC-50-300-PPVA-N3
This double-acting industrial component from Festo features a 50 mm piston diameter, a 300 mm stroke, and an M16x1.5 external piston rod thread conforming to ISO 15552. Designed with a profile barrel, piston rod at one end, and adjustable pneumatic cushioning at both ends, it operates within a pressure range of 0.04 MPa to 1.2 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. The unit offers position sensing via proximity switch, moderate corrosion resistance (CRC 2), and ISO 14644-1 Class 5 cleanroom suitability for ambient temperatures between -20 °C and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2098975
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2098975.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 300 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Cushioning length
- 22 mm
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass
- 1115 g
- Moving mass at 0 mm stroke
- 365 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 2870 g
- Basic weight with 0 mm stroke
- 1190 g
- Additional weight per 10 mm stroke
- 56 g
- Type of mounting
- Alternatively: | With internal thread
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2098975. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
