Festo
2101

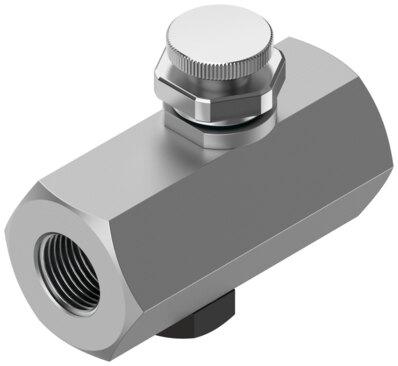

One-way flow control valve GR-1/4
The Festo 2101 is a one-way flow control industrial component featuring G1/4 pneumatic connections on both ports and a knurled screw adjusting element for in-line installation. Constructed with a wrought aluminum alloy housing, this RoHS-compliant part supports an operating pressure range of 0.5 bar to 10 bar, an ambient and medium temperature range of -20 °C to 75 °C, and compressed air operation as per ISO 8573-1:2010 [7:-:-]. It delivers a standard nominal flow rate of 370 l/min in the flow control direction and 150 l/min in the non-return direction, weighs 80 g, and provides ATEX certification for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2101
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2101.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- One-way ow control function
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Adjusting element
- Knurled screw
- Type of mounting
- In-line installation
- Standard nominal ow rate in ow control direction
- 370 l/min
- Standard nominal ow rate in non-return direction
- 150 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Housing material
- Wrought aluminum alloy
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 570 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 340 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Product weight
- 80 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of adjusting screw
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2101. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
