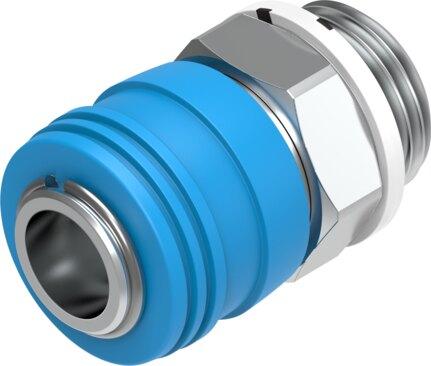

Reference imageConfirm configuration by manufacturer part number.
Festo
2145
Quick coupling socket KD4-1/2-A
The Festo part number 2145 is an industrial component featuring a 10 mm nominal width, an external thread G1/2 pneumatic connection 1, and a product weight of 78 g. Constructed with a nickel-plated brass housing, NBR seals, a high-alloy stainless steel spring, and a PA66-GF30 / TPE-U threaded seal, this RoHS-compliant unit operates within a pressure range of -0.095 MPa to 1.2 MPa and an ambient temperature range of -10 °C to 60 °C. It accommodates compressed air according to ISO 8573-1:2010 [7:-:-], allows lubricated operation, and provides a normal nominal flow rate of 257 l/min to 1337 l/min normalized to DIN 1343 alongside an ISO 8778 standardized flow rate of 278.6 l/min to 1449.3 l/min. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2145
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2145.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 10 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 257 l/min...1337 l/min
- Nominal ow rate standardized according to ISO 8778
- 278.6 l/min...1449.3 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 32.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 78 g
- Pneumatic connection 1
- External thread G1/2
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- PA66-GF30 / TPE-U
- Threaded coupling material
- Brass, nickel-plated
- Inner raceway material
- Brass
- Circlip material
- high-alloy stainless steel
- Material of pins
- high-alloy stainless steel
- Valve body material
- Brass
- Material releasing sleeve
- PP
