2151

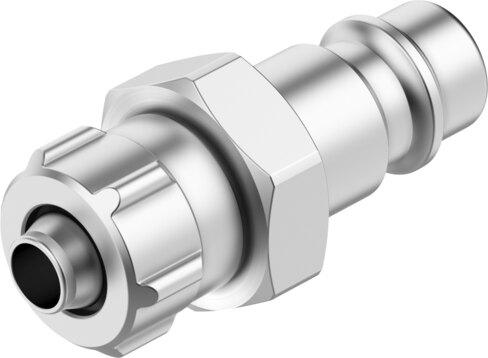

Name: Festo 2151 Quick coupling plug KS4-CK-6
Brand: Festo

Quick coupling plug KS4-CK-6

The Festo part number 2151 is an industrial component featuring a nominal width of 4.9 mm, a product weight of 26 g, and an operating pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi). It delivers a normal nominal flow rate from 432 l/min to 495 l/min (468.3 l/min to 536.6 l/min standardized to ISO 8778) using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. Constructed with a nickel-plated brass body, an anodized wrought aluminum alloy union nut, and RoHS-compliant materials, the unit offers a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity for an ambient temperature range of -10 °C to 60 °C. Pneumatic connection 1 accommodates 8 mm outside diameter pneumatic tubing or barbed fittings with a 6 mm inside diameter using a union nut. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2151
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2151.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 4.9 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 432 l/min...495 l/min
Nominal ow rate standardized according to ISO 8778: 468.3 l/min...536.6 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 26 g
Pneumatic connection 1: for pneumatic tubing outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut
Material of union nut: Wrought aluminum alloy, anodized
Note on materials: RoHS compliant
Information on materials: Brass, nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2151. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
