Festo
2153283

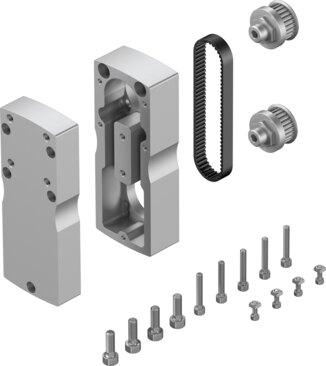

Parallel kit EAMM-U-50-D32-40P-78
The Festo 2153283 is an industrial component featuring a size 50 designation, a 1:1 gear ratio, and a transferable torque of 1 Nm with a 0.01 Nm no-load driving torque. This unit supports any mounting position, accommodates a maximum rotational speed of 6000 rpm, and incorporates a D32B actuator interface alongside a 40P motor-in interface. Weighing 596 g with a mass moment of inertia of 12.1 kgmm², the RoHS-compliant assembly offers an IP40 degree of protection, VDMA24364 Zone III LABS conformity, and operates in ambient temperatures from -10 °C to 60 °C while withstanding storage temperatures between -25 °C and 60 °C at 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2153283
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2153283.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 12.1 kgmm²
- No-load driving torque
- 0.01 Nm
- Transferable torque
- 1 Nm
- Product weight
- 596 g
- Interface code, actuator
- D32B
- Interface code, motor in
- 40P
- Note on materials
- RoHS compliant
