2155

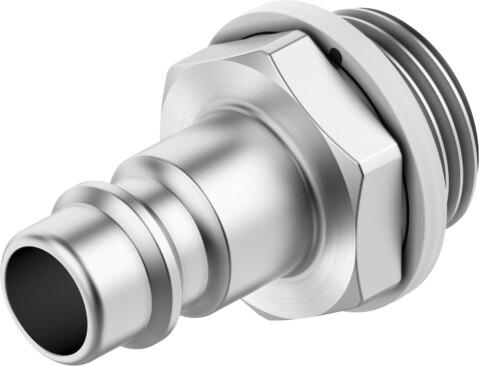

Name: Festo 2155 Quick coupling plug KS4-3/8-A
Brand: Festo

Quick coupling plug KS4-3/8-A

The Festo part number 2155 is an industrial component featuring an external thread G3/8 pneumatic connection 1, a 7.85 mm nominal width, and a product weight of 29 g. Constructed with nickel-plated brass and a threaded seal of PA66-GF30 and TPE-U, it operates across a pressure range of -0.095 MPa to 1.2 MPa (-13.775 psi to 174 psi) and supports compressed air media conforming to ISO 8573-1:2010 [7:-:-] with a normal nominal flow rate of 756 l/min to 1323 l/min. This RoHS-compliant unit has a nominal tightening torque of 21.5 Nm with a ±15% tolerance, a CRC rating of 1 for low corrosion stress, and functions within an ambient temperature range of -10 °C to 60 °C. Please submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2155
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2155.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 7.85 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 756 l/min...1323 l/min
Nominal ow rate standardized according to ISO 8778: 819.5 l/min...1434.1 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Nominal tightening torque: 21.5 Nm
Tolerance for nominal tightening torque: ±15%
Product weight: 29 g
Pneumatic connection 1: External thread G3/8
Note on materials: RoHS compliant
Material of threaded seal: PA66-GF30 / TPE-U
Information on materials: Brass, nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2155. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
