Festo
2155239

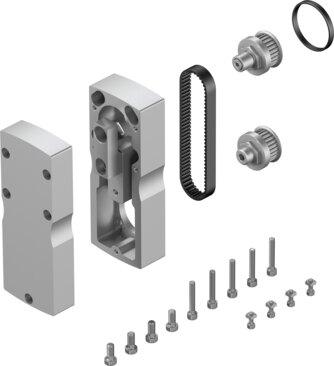

Parallel kit EAMM-U-50-S38-40P-78
The Festo part number 2155239 is an industrial component featuring a size 50 design with an actuator interface code of S38 and a motor-in interface code of 40P. This unit operates with a 1:1 gear ratio, a transferable torque of 1 Nm, a no-load driving torque of 0.01 Nm, a mass moment of inertia of 12.1 kgmm², and a maximum rotational speed of 6000 rpm, while weighing 577 g with RoHS-compliant materials. It maintains an IP40 degree of protection, VDMA24364 Zone III LABS conformity, and an any-position mounting capability across an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2155239
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2155239.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 12.1 kgmm²
- No-load driving torque
- 0.01 Nm
- Transferable torque
- 1 Nm
- Product weight
- 577 g
- Interface code, actuator
- S38
- Interface code, motor in
- 40P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2155239. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
