Festo
2155875

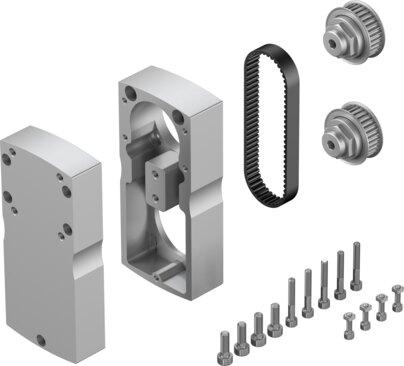

Parallel kit EAMM-U-86-D60-80P-102
The Festo part number 2155875 is an industrial component featuring a size 86 designation, a 1:1 gear ratio, and a D60B actuator interface code paired with an 80P motor-in interface code. This unit provides a transferable torque of 9.5 Nm, a no-load driving torque of 0.25 Nm, and a maximum rotational speed of 5000 rpm while maintaining a mass moment of inertia of 175 kgmm² and a total product weight of 2300 g. Constructed in compliance with RoHS standards and VDMA24364 Zone III LABS conformity, it supports any mounting position, an IP40 degree of protection, relative air humidity ranging from 0 to 95%, storage temperatures between -25 °C and 60 °C, and ambient operating temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2155875
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2155875.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 2300 g
- Interface code, actuator
- D60B
- Interface code, motor in
- 80P
- Note on materials
- RoHS compliant
