Festo
2157004

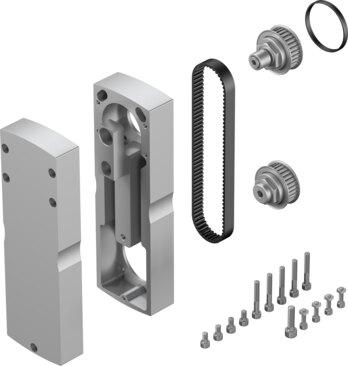

Parallel kit EAMM-U-86-S62-80P-177
The Festo part number 2157004 is an industrial component featuring a size 86 frame with a 1:1 gear ratio, an S62 actuator interface code, and an 80P motor input interface code. This RoHS-compliant unit weighs 3130 g, provides a transferable torque of 9.5 Nm with a no-load driving torque of 0.25 Nm, and achieves a maximum rotational speed of 5000 rpm alongside a mass moment of inertia of 175 kgmm². Operating within an ambient temperature range of -10 °C to 60 °C, relative air humidity from 0 to 95%, and storage temperatures between -25 °C and 60 °C, it offers an IP40 degree of protection, VDMA24364 Zone III LABS conformity, and supports any mounting position. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2157004
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2157004.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 3130 g
- Interface code, actuator
- S62
- Interface code, motor in
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2157004. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
