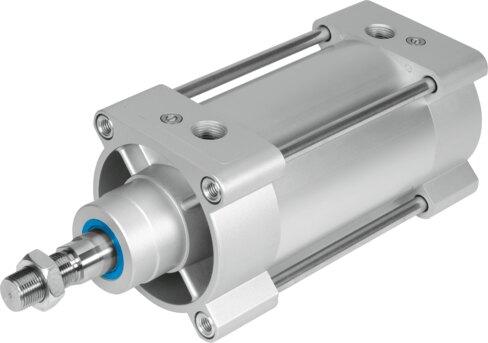

Reference imageConfirm configuration by manufacturer part number.
Festo
2158455
ISO cylinder DSBG-125- -PPVA-N3
The Festo 2158455 is a double-acting industrial component featuring an ISO 15552 structural design with a 125 mm piston diameter, an M27x2 external piston rod thread, and a stroke length ranging from 1 mm to 2800 mm. Operating at pressures between 0.02 MPa and 1 MPa utilizing compressed air according to ISO 8573-1:2010 [7:4:4], this piston-rod cylinder delivers a theoretical retracting force of 6881 N at 6 bar while incorporating adjustable pneumatic cushioning at both ends and position sensing via proximity switch. It is rated for a moderate corrosion resistance class (CRC 2) and an ambient temperature range of -20 °C to 80 °C with any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2158455
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2158455.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.02 MPa...1 MPa | 0.2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Cushioning length
- 45 mm
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass at 0 mm stroke
- 2245 g
- Additional moving mass per 10 mm stroke
- 63 g
- Basic weight with 0 mm stroke
- 6611 g
- Additional weight per 10 mm stroke
- 143 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/2
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2158455. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
