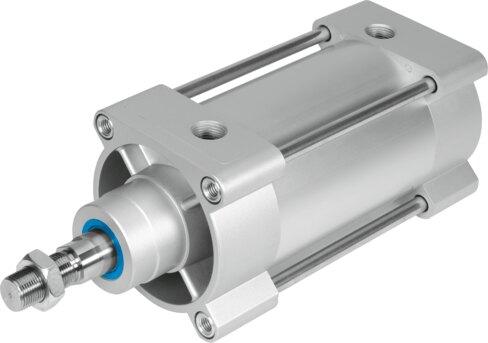

Reference imageConfirm configuration by manufacturer part number.
Festo
2159919
ISO cylinder DSBG-125-500-PPSA-N3
The Festo 2159919 is an ISO 15552 compliant double-acting industrial component featuring a 125 mm piston diameter, a 500 mm stroke, and an M27x2 external piston rod thread at one end. Designed with tie rods, a cylinder barrel, and a piston, this unit operates within a pressure range of 0.2 to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It incorporates self-adjusting pneumatic end-position cushioning with a 45 mm cushioning length, position sensing via proximity switch, and a moderate corrosion resistance class (CRC 2) for ambient temperatures spanning -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this configuration.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2159919
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2159919.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 500 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.02 MPa...1 MPa | 0.2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Cushioning length
- 45 mm
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass
- 5395 g
- Moving mass at 0 mm stroke
- 2245 g
- Additional moving mass per 10 mm stroke
- 63 g
- Product weight
- 13761 g
- Basic weight with 0 mm stroke
- 6611 g
- Additional weight per 10 mm stroke
- 143 g
- Type of mounting
- Alternatively: | With internal thread
