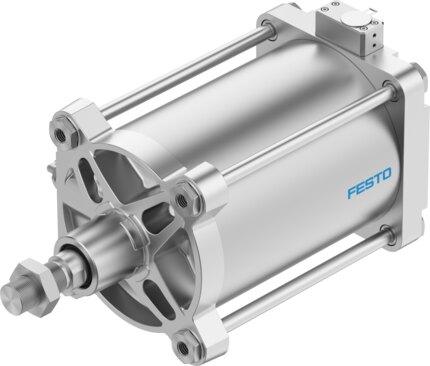

Reference imageConfirm configuration by manufacturer part number.
Festo
2200311
Linear actuator DFPI-250- -ND2P-C1V-NB3P-A
The Festo 2200311 is a double-acting industrial component featuring a 250 mm piston diameter, a 250 actuator size, and a variable stroke ranging from 40 mm to 990 mm based on the ISO 15552 norm. Designed with a piston, piston rod, tie rod 1, and cylinder barrel, this un-cushioned unit operates at a nominal pressure of 0.6 MPa (6 bar / 87 psi) within a 0.3 MPa to 0.8 MPa range and includes an integrated linear potentiometer with a 4-20 mA analog output and setpoint input. It requires a 24 V DC operating voltage with a maximum current consumption of 220 mA, features reverse polarity protection for the operating voltage, setpoint, and initialization connection, and carries RCM compliance and KC-EMV certifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2200311
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2200311.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 250
- Stroke
- 40 mm...990 mm
- Piston diameter
- 250 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Initialization connection | For operating voltage | For setpoint
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 21.6 V...26.4 V
- Max. current consumption
- 220 mA
- Nominal operating voltage DC
- 24 V
- Setpoint input
- 4 mA...20 mA
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions
