Festo
2201101

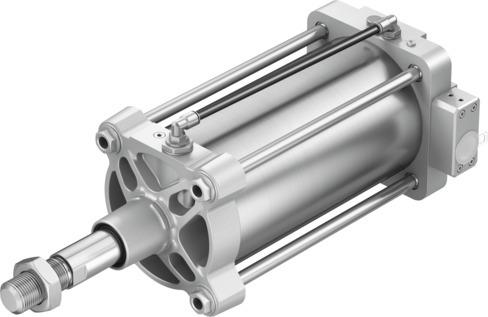

Linear actuator DFPI-160- -ND2P-C1V-NB3P-A
The Festo 2201101 is an ISO 15552 industrial component featuring a 160 mm piston diameter, a 160 valve actuator size, and a stroke ranging from 40 mm to 990 mm. This double-acting unit is built with a piston, piston rod, tie rod 1, and cylinder barrel, and includes an integrated linear potentiometer operating on a potentiometer measuring principle with reverse polarity protection for the operating voltage, setpoint, and initialization connection. Operating within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar / 43.5 psi to 116 psi) at a nominal 0.6 MPa (6 bar / 87 psi), it utilizes a 24 V DC operating voltage range of 21.6 V to 26.4 V with a 220 mA maximum current consumption, a 4 to 20 mA analog output, a 4 mA to 20 mA setpoint input, RCM compliance mark certification, and KC-EMV KC characters. Designed with no cushioning for any mounting position, please submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2201101
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2201101.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 160
- Stroke
- 40 mm...990 mm
- Piston diameter
- 160 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Initialization connection | For operating voltage | For setpoint
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 21.6 V...26.4 V
- Max. current consumption
- 220 mA
- Nominal operating voltage DC
- 24 V
- Setpoint input
- 4 mA...20 mA
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2201101. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
