Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

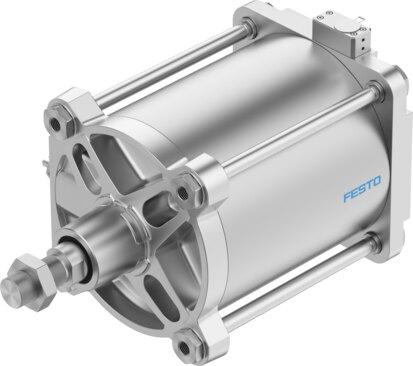

Reference imageConfirm configuration by manufacturer part number.
Festo
2206373
Linear actuator DFPI-200- -ND2P-C1V-NB3P-A
The Festo 2206373 is a double-acting industrial component featuring a 200 mm piston diameter, a 200 valve actuator size, and a stroke range of 40 mm to 990 mm based on the ISO 15552 norm. It includes an integrated linear potentiometer with a potentiometer measuring principle, operates at a nominal pressure of 0.6 MPa (6 bar / 87 psi) within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar / 43.5 psi to 116 psi), and features 4 to 20 mA analog output and setpoint inputs alongside reverse polarity protection for operating voltage, setpoint, and initialization connection. The unit utilizes a structural design of piston, piston rod, tie rod 1, and cylinder barrel, functions with no cushioning in any mounting position, draws a maximum current of 220 mA at a nominal 24 V DC operating voltage (21.6 V to 26.4 V range), and carries RCM compliance and KC-EMV certifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2206373
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2206373.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 200
- Stroke
- 40 mm...990 mm
- Piston diameter
- 200 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Initialization connection | For operating voltage | For setpoint
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 21.6 V...26.4 V
- Max. current consumption
- 220 mA
- Nominal operating voltage DC
- 24 V
- Setpoint input
- 4 mA...20 mA
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2206373. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
