Festo
2207372

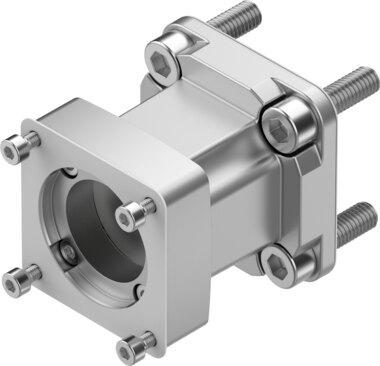

Axial kit EAMM-A-D32-40P-S1
The Festo industrial component, part number 2207372, features a nominal length of 45.5 mm, a mass moment of inertia of 0.28 kgmm², and a transferable torque of 1.6 Nm with a maximum rotational speed of 10000 rpm. Weighing 160 g, this unit includes a D32 actuator interface code, a 40P motor-in interface code, and achieves an IP65 degree of protection with VDMA24364 Zone III LABS conformity. It operates within ambient temperatures from -10 °C to 60 °C, accommodates storage temperatures from -25 °C to 60 °C, supports 0 to 95% relative air humidity, utilizes RoHS compliant materials, and permits any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2207372
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2207372.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 45.5 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.6 Nm
- Product weight
- 160 g
- Interface code, actuator
- D32
- Interface code, motor in
- 40P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2207372. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
