Festo
2214899

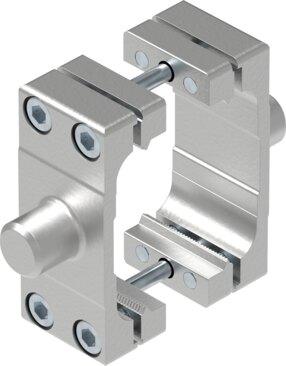

Pivot pin kit DAMT-V1-40-A
Engineered to ISO 15552 norms for Size 40 applications, this Festo industrial component features a high-alloy stainless steel rod, galvanized steel screws, a galvanized steel trunnion flange, and a galvanized steel clamping piece. The unit supports a maximum load capacity of 1.5 kN and operates within an ambient temperature range of -40 °C to 150 °C while maintaining a product weight of 387.5 g and a CRC rating of 1 for low corrosion stress. Furthermore, the construction complies with RoHS standards, VDMA24364-B2-L LABS conformity, and specific restrictions regarding copper content and electrical components for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2214899
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2214899.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 1.5 kN
- Product weight
- 387.5 g
- Note on materials
- RoHS compliant
- Material of screws
- Steel | Galvanized
- Trunnion ange material
- Steel, galvanized
- Clamping piece material
- Steel, galvanized
- Rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2214899. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
