Festo
2214909

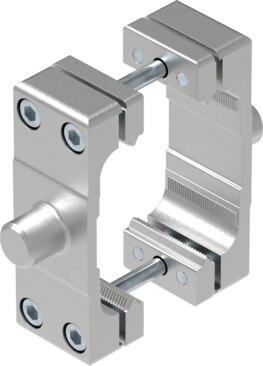

Pivot pin kit DAMT-V1-50-A
The Festo 2214909 industrial component features a size 50 design based on the ISO 15552 norm, with a maximum load capacity of 2.5 kN and a product weight of 602.2 g. Constructed with a high-alloy stainless steel rod, galvanized steel screws, a galvanized steel trunnion flange, and a galvanized steel clamping piece, this RoHS compliant unit supports a CRC of 1 and an ambient temperature range of -40 °C to 150 °C. It complies with VDMA24364-B2-L LABS conformity and meets Li-ion battery production requirements by excluding copper over 1% by mass along with specific electrical components. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2214909
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2214909.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 2.5 kN
- Product weight
- 602.2 g
- Note on materials
- RoHS compliant
- Material of screws
- Steel | Galvanized
- Trunnion ange material
- Steel, galvanized
- Clamping piece material
- Steel, galvanized
- Rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2214909. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
