Festo
2215385

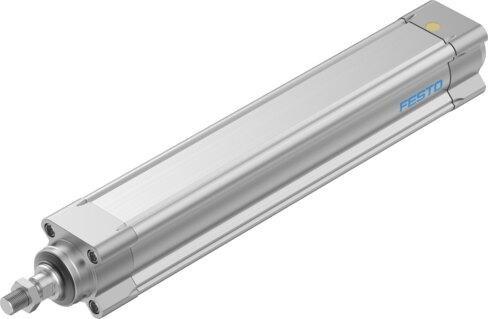

Electric cylinder ESBF-BS-40-200-5P
The Festo 2215385 is an electric cylinder with a ball screw, featuring a 40 size and an ISO 15552 based structural design with any mounting position. It delivers a 200 mm working stroke, 30 µm reversing backlash, 5 mm/U spindle pitch, and ±0.01 mm repetition accuracy, driven via stepper or servo motor with position sensing through a proximity switch. Featuring an M12x1.25 external thread piston rod end, 16 mm screw diameter, plain bearing-guide torsion protection, and a maximum rotational speed of 4800 rpm, it achieves a maximum speed of 0.42 m/s and a maximum acceleration of 5 m/s² alongside a maximum piston rod rotation angle of ±0.2 degrees. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2215385
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2215385.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 40
- Stroke
- 200 mm
- Piston rod thread
- M12x1.25
- Reversing backlash
- 30 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 5 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.2 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 4800 rpm
- Max. speed
- 0.42 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 3 Nm
- Max. radial force on actuator shaft
- 130 N
- Max. feed force Fx
- 3000 N
