Name: Festo 2226101 Planar surface gantry EXCM-30-
Brand: Festo

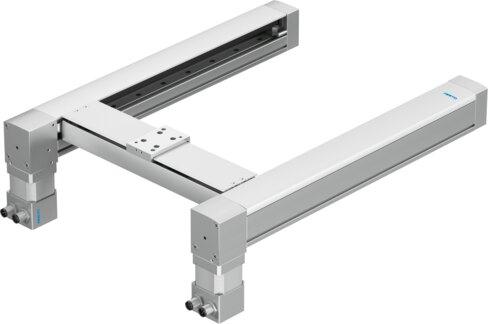

Planar surface gantry EXCM-30-

The Festo 2226101 is a size 30 industrial component featuring a planar surface gantry structural design and an integrated line filter, operating via a PWM MOSFET power amplifier with cascade, P position, PI speed, and PI current controllers. This stepper motor unit achieves 2000 steps per revolution in microstepping mode with linear interpolation, supporting maximum speeds from 0.5 m/s to 1 m/s, accelerations from 10 m/s² to 20 m/s², and a repetition accuracy of ±0.05 mm at a 100% duty cycle. Equipped with an encoder position sensor, a 15-Ohm braking resistor, 7-segment and LED displays, and safe torque off (STO) alongside comprehensive protective functions, the unit accommodates block selection and direct position transfer modes in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal price quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2226101
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2226101.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 30
Controller operating mode: PWM MOSFET power amplier | Cascade controller with | P position controller | PI speed controller | PI current regulator
Mode of operation: Microstepping, 2000 steps/rev
Mounting position: Any
Position sensor: Encoder
Line lter: Integrated
Protective function: I²t monitoring | Temperature monitoring | Current monitoring | Voltage failure detection | Following error monitoring | Software end position detection
Structural design: Planar surface gantry
Type of interpolation: Linear interpolation
Motor type: Stepper motor
Position mode: Block selection mode | Transfer position directly
Safety function: Safe torque oﬀ (STO)
Display: 7-segment | LED
Max. acceleration: 10 m/s²...20 m/s²
Max. speed: 0.5 m/s...1 m/s
Repetition accuracy: ±0.05 mm
Braking resistor: 15 Ohm
Characteristics of digital logic outputs: Not galvanically isolated
Duty cycle: 100%
Max. current of digital logic outputs: 100 mA
Nominal voltage, logic supply DC: 24 V
Nominal voltage, load supply DC: 24 V...48 V
Parameterization interface: Ethernet
