Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

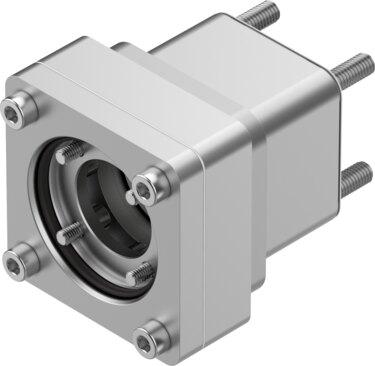

Reference imageConfirm configuration by manufacturer part number.
Festo
2256396
Axial kit EAMM-A-D32-40G-S1
This Festo industrial component, part number 2256396, features a nominal length of 56.5 mm, a product weight of 420 g, and a mass moment of inertia of 5.87 kgmm². Engineered with a transferable torque of 6.5 Nm and a maximum rotational speed of 8000 rpm, it includes actuator interface code D32 and motor input interface code 40G. The unit operates at ambient temperatures from -10 °C to 60 °C, supports storage temperatures between -25 °C and 60 °C, tolerates relative air humidity of 0 to 95%, and provides an IP65 degree of protection in any mounting position while meeting VDMA24364 Zone III LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2256396
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2256396.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 56.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 420 g
- Interface code, actuator
- D32
- Interface code, motor in
- 40G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2256396. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
