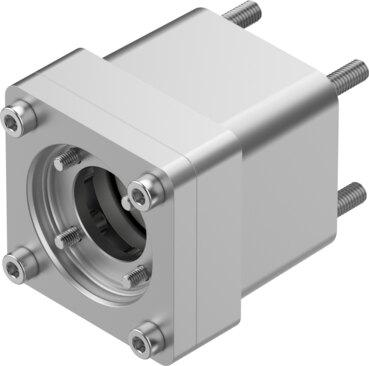

Reference imageConfirm configuration by manufacturer part number.
Festo
2256398
Axial kit EAMM-A-D40-40G-G2
Manufactured by Festo, part number 2256398 is an industrial component featuring a nominal length of 62.5 mm, a product weight of 450 g, and a mass moment of inertia of 5.87 kgmm². This RoHS compliant part accommodates a maximum rotational speed of 8000 rpm and a transferable torque of 12.5 Nm, utilizing actuator interface codes D40 and D40C alongside a motor-in interface code of 40G. Built for any mounting position with an IP40 degree of protection, it operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and adheres to VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2256398
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2256398.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 62.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 450 g
- Interface code, actuator
- D40 | D40C
- Interface code, motor in
- 40G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2256398. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
