Festo
2256697

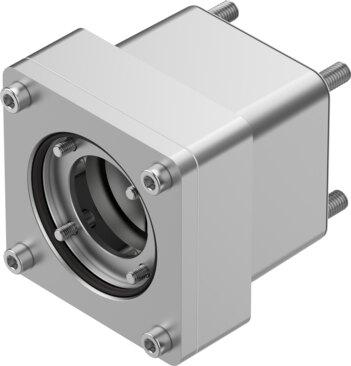

Axial kit EAMM-A-D60-60H-S1
The Festo 2256697 is an industrial component featuring a nominal length of 75.4 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 1250 g, supporting any mounting position with a maximum rotational speed of 6000 rpm and a transferable torque of 21 Nm. It includes actuator interface codes D60 and D60C alongside a motor-in interface code of 60H, while complying with VDMA24364-B2-L LABS conformity and RoHS material requirements. Designed with an IP65 degree of protection, this unit operates within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, and a relative air humidity range of 0 to 95%. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2256697
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2256697.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 75.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1250 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 60H
- Note on materials
- RoHS compliant
