Festo
2256698

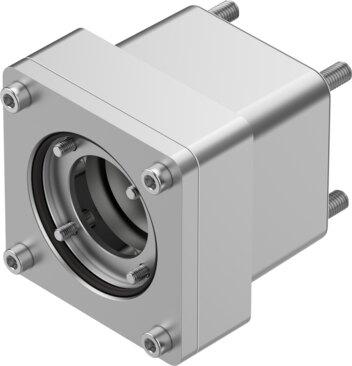

Axial kit EAMM-A-D60-60G-S1
The Festo part number 2256698 is an industrial component featuring a nominal length of 75.4 mm, a mass moment of inertia of 34.8 kgmm², a product weight of 1250 g, and a transferable torque of 21 Nm with a maximum rotational speed of 6000 rpm. It includes actuator interface codes D60 and D60C, a motor input interface code of 60G, and VDMA24364-B2-L LABS conformity with RoHS-compliant materials. Featuring an IP65 degree of protection, this unit operates in ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels of 0 to 95% in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2256698
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2256698.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 75.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 1250 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2256698. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
