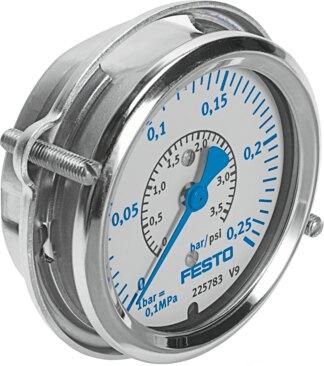

Name: Festo 225783 Flanged pressure gauge FMA-63-0,25-C
Brand: Festo

Flanged pressure gauge FMA-63-0,25-C

The Festo part number 225783 is an industrial component pressure gauge featuring a nominal size of 63 and a display and operating pressure range of 0 bar to 0.25 bar, or 0 psi to 3.6 psi. Conforming to EN 837-3, this device incorporates front panel mounting with a rear-centered G1/4 pneumatic connection, a brass screwed plug, a steel housing, and a PMMA inspection window. It accommodates liquid and gaseous media—excluding acetylene and oxygen—within a medium temperature range of -20 °C to 80 °C and an ambient temperature range of -20 °C to 60 °C, offering ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 225783
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 225783.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Display range: 0 bar...0.25 bar | 0 psi...3.6 psi
Conforms to standard: EN 837-3
Pressure gauge nominal size: 63
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Type of mounting: Front panel mounting
Operating medium: Liquid media | Gaseous media
Information on operating and pilot media: No acetylene | No oxygen
Operating pressure: 0 bar...0.25 bar
Intermittent load factor: 0.9
Continuous load factor: 0.75
Measurement accuracy class: 1.6
Degree of protection: IP43
Temperature of medium: -20 °C...80 °C
Ambient temperature: -20 °C...60 °C
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Connection position: Centered on rear side
Pneumatic connection: G1/4
Material of screwed plug: Brass
Housing material: Steel
Inspection window material: PMMA
Fastening ring material: Steel
Material of screws: Steel
Product weight: 120 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 225783. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
