Festo
2264375

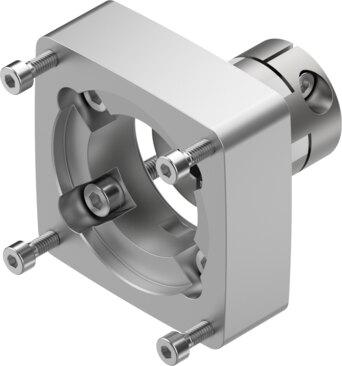

Axial kit EAMM-A-P6-38A-60P
The Festo part number 2264375 is an industrial component featuring a nominal length of 21 mm, a mass moment of inertia of 5.87 kgmm², and a transferable torque of 6.5 Nm with a maximum rotational speed of 8000 rpm. This RoHS compliant unit provides an IP40 degree of protection, VDMA24364-B2-L LABS conformity, and operates in ambient temperatures from -10 °C to 60 °C while accommodating storage temperatures between -25 °C and 60 °C and relative air humidity from 0 to 95%. Configured with any mounting position, a product weight of 210 g, actuator interface code P6-38A, motor-in interface code 60P, and coupling housing interface code 38A, it integrates seamlessly into your mechanical assemblies. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2264375
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2264375.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 21 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 210 g
- Interface code, actuator
- P6-38A
- Interface code, motor in
- 60P
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS compliant
