Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

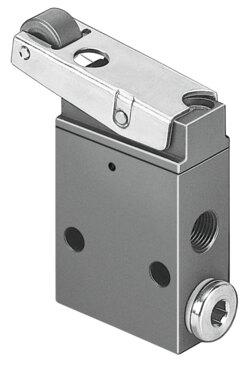

Reference imageConfirm configuration by manufacturer part number.
Festo
2272
Roller lever valve RS-3-1/8
The Festo part number 2272 is a mechanically actuated 3/2-way closed monostable industrial component utilizing a plate seat structural design with soft sealing and a nominal width of 3.5 mm. It features an internal pilot air supply port, an adjustable exhaust air function, a mechanical spring reset method, and a normal nominal flow rate of 151 l/min normalized to DIN 1343 within an operating pressure range of 0.35 MPa to 0.8 MPa. Designed for any mounting position with a moderate corrosion resistance class of CRC 2, this unit operates on compressed air per ISO 8573-1:2010 [-:-:-] with oil lubrication required for further use, and holds ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2272
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2272.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 151 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Nominal width
- 3.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Note on forced dynamization
- Switching frequency min. 1/year
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 1.73 N
- Product weight
- 104 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2272. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
