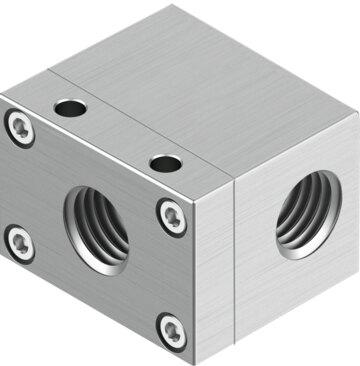

Reference imageConfirm configuration by manufacturer part number.
Festo
2280
Quick exhaust valve SE-3/4
The Festo 2280 is a quick exhaust valve featuring G3/4 pneumatic connections for ports 1, 2, and 3, an anodized wrought aluminum alloy housing, and NBR seals. It operates within a pressure range of 0.5 bar to 10 bar, delivering a standard nominal flow rate for exhaust air of 7500 l/min and for pressurization of 2500 l/min between 6 and 5 bar. This component supports a nominal width of 19 mm, an ambient and medium temperature range of -20 °C to 75 °C, and allows for optional oil-lubricated compressed air operation according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2280
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2280.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Pneumatic connection 1
- G3/4
- Pneumatic connection 2
- G3/4
- Type of mounting
- With through-hole
- Standard nominal ow rate exhaust air 6->5 bar
- 7500 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 2500 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Housing material
- Wrought aluminum alloy | Anodized
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Nominal width
- 19 mm
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Product weight
- 710 g
- Pneumatic connection 3
- G3/4
- Note on materials
- RoHS compliant
- Seals material
- NBR
