Name: Festo 2295382 Electric cylinder ESBF-LS-40-200-3P
Brand: Festo

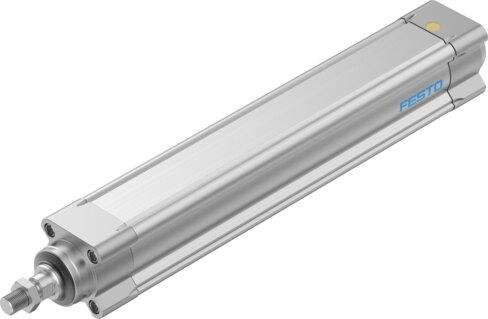

Electric cylinder ESBF-LS-40-200-3P

The Festo electric cylinder with lead screw spindle (part number 2295382) features a size 40 profile, a 200 mm working stroke, and an M12x1.25 external piston rod end based on the ISO 15552 norm. Designed with a structural lead screw spindle, a 16 mm screw diameter, a 3 mm/U spindle pitch, and an integrated plain bearing-guide, this component delivers a max speed of 0.15 m/s, a max rotational speed of 1000 rpm, a max acceleration of 2.5 m/s², a repetition accuracy of ±0.05 mm, and a 100 µm reversing backlash. Compatible with stepper motors or servo motors in any mounting position, the unit includes position sensing via a proximity switch and tolerates a maximum piston rod angle of rotation of ±0.2 degrees. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2295382
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2295382.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 200 mm
Size: 40
Stroke: 200 mm
Piston rod thread: M12x1.25
Reversing backlash: 100 µm
Screw diameter: 16 mm
Spindle pitch: 3 mm/U
Max. angle of rotation of the piston rod +/-: 0.2 deg
Based on norm: ISO 15552
Mounting position: Any
Piston rod end: External thread
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with lead screw spindle
Spindle type: Lead screw
Protection against torsion/guide: With plain bearing-guide
Max. acceleration: 2.5 m/s²
Max. rotational speed: 1000 rpm
Max. speed: 0.15 m/s
Repetition accuracy: ±0.05 mm
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Max. driving torque: 2.4 Nm
Max. radial force on actuator shaft: 130 N
Max. feed force Fx: 1000 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2295382. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
