Festo
2297641

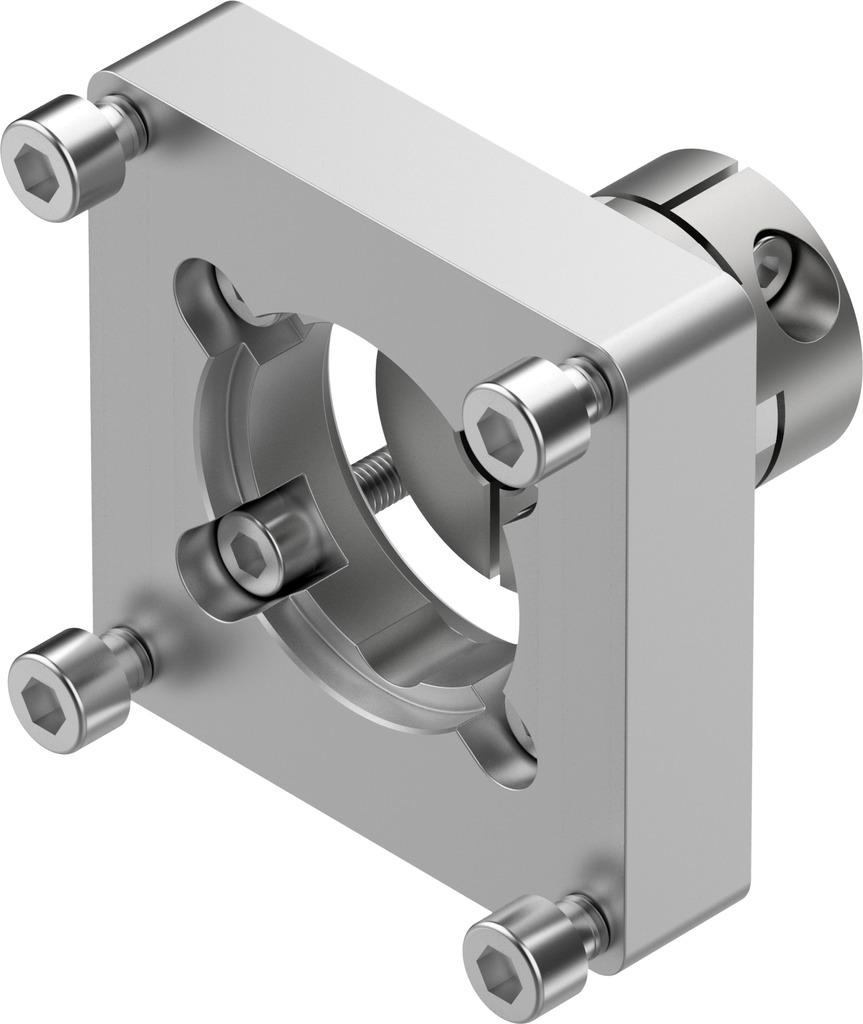

Axial kit EAMM-A-P6-38A-67A
The Festo 2297641 industrial component features any mounting position and a transferable torque of 6.5 Nm, with actuator interface code P6-38A, motor in interface code 67A, and coupling housing interface code 38A. Weighing 230 g, this RoHS-compliant part operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and a relative air humidity of 0 to 95%, while providing IP40 degree of protection and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2297641
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2297641.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Transferable torque
- 6.5 Nm
- Product weight
- 230 g
- Interface code, actuator
- P6-38A
- Interface code, motor in
- 67A
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS-compliant
