Festo
2297645

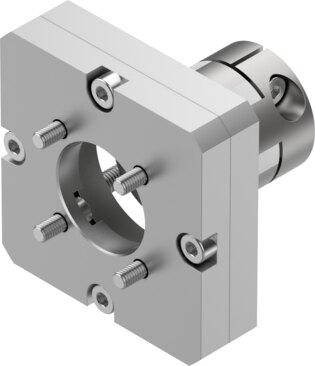

Axial kit EAMM-A-P6-38A-40G
The Festo industrial component, part number 2297645, features a nominal length of 17 mm, a product weight of 190 g, and a mass moment of inertia of 5.87 kgmm². Operating at a maximum rotational speed of 8000 rpm, it delivers a transferable torque of 6.5 Nm across an ambient temperature range of -10 °C to 60 °C with IP40 protection, VDMA24364-B2-L LABS conformity, and RoHS compliance. The unit integrates actuator interface code P6-38A, motor-in interface code 40G, and coupling housing interface code 38A.2 for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2297645
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2297645.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 17 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 190 g
- Interface code, actuator
- P6-38A
- Interface code, motor in
- 40G
- Interface code, coupling housing
- 38A.2
- Note on materials
- RoHS compliant
