Festo
2297684

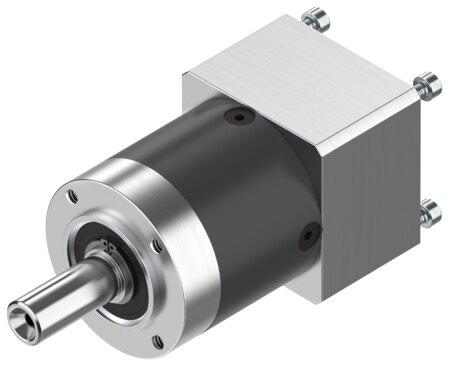

Gear unit EMGA-40-P-G3-EAS-40
The Festo 2297684 is a 350 g industrial component featuring a planetary gear set with a 3:1 gear ratio, a 40 mm gearbox and motor flange size, and 40G output shaft and 40P actuator interfaces. It delivers a continuous output torque of 11 Nm, a maximum output torque of 17.6 Nm, a torsional backlash of 0.25 deg, a torsional rigidity of 1 Nm/arcmin, and a mass moment of inertia of 0.031 kgcm² while supporting a max actuator speed of 18000 rpm and up to 98% efficiency. Built for operational temperatures from -25 °C to 90 °C, the IP54-rated unit provides 200 N of permissible axial and radial shaft load, complies with VDMA24364-B2-L LABS conformity, and utilizes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2297684
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2297684.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 40 mm
- Motor ange size
- 40 mm
- Torsional backlash
- 0.25 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 18000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 11 Nm
- Mass moment of inertia, gearbox
- 0.031 kgcm²
- Max. output torque
- 17.6 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 1 Nm/arcmin
- Product weight
- 350 g
- Permissible axial shaft load
- 200 N
- Permissible radial shaft load
- 200 N
- Gearbox interface, output shaft
- 40G
- Gearbox interface, actuator
- 40P
- Note on materials
- RoHS compliant
