Reference imageConfirm configuration by manufacturer part number.
Festo
2297690

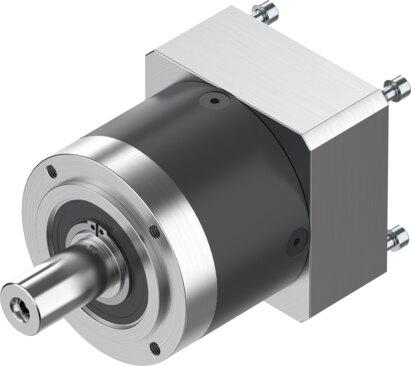

Gear unit EMGA-80-P-G3-EAS-80
Engineered with a planetary gear set and a 3:1 gear ratio, this Festo 2297690 industrial component features an 80 mm gearbox and motor flange size with an 80G output shaft and 80P actuator interface. The unit delivers a continuous output torque of 85 Nm, a maximum output torque of 136 Nm, a torsional rigidity of 6 Nm/arcmin, and a torsional backlash of 0.12 degrees while supporting a maximum actuator speed of 7000 rpm. Weighing 2000 g with a gearbox mass moment of inertia of 0.77 kgcm², it operates within a temperature range of -25 °C to 90 °C, provides an IP54 degree of protection, achieves 98% maximum efficiency, and withstands permissible axial and radial shaft loads of 1000 N and 750 N respectively, alongside VDMA24364-B2-L LABS conformity and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2297690
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2297690.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 80 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 3:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 85 Nm
- Mass moment of inertia, gearbox
- 0.77 kgcm²
- Max. output torque
- 136 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 6 Nm/arcmin
- Product weight
- 2000 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2297690. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
