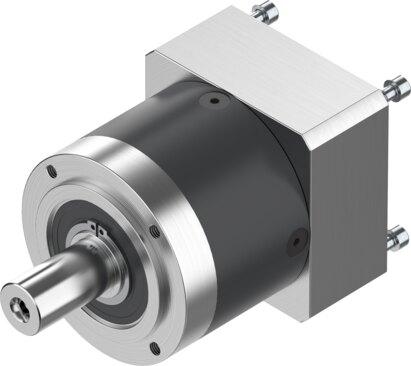

Reference imageConfirm configuration by manufacturer part number.
Festo
2297691
Gear unit EMGA-80-P-G5-EAS-80
The Festo 2297691 is an industrial component featuring an 80 mm gearbox and motor flange size with a 5:1 planetary gear set ratio. Weighing 2000 g, this unit delivers a continuous output torque of 110 Nm, a maximum output torque of 176 Nm, and an actuator speed up to 7000 rpm while maintaining a torsional backlash of 0.12 deg and an efficiency of 98%. Built with an IP54 degree of protection, it operates within a temperature range of -25 °C to 90 °C, supports a permissible axial shaft load of 1000 N and radial shaft load of 750 N, and complies with RoHS and VDMA24364-B2-L LABS conformity standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2297691
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2297691.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 80 mm
- Torsional backlash
- 0.12 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 5:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 110 Nm
- Mass moment of inertia, gearbox
- 0.45 kgcm²
- Max. output torque
- 176 Nm
- Max. efficiency
- 98 %
- Torsional rigidity
- 6 Nm/arcmin
- Product weight
- 2000 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 80P
- Note on materials
- RoHS compliant
