Festo
2305778

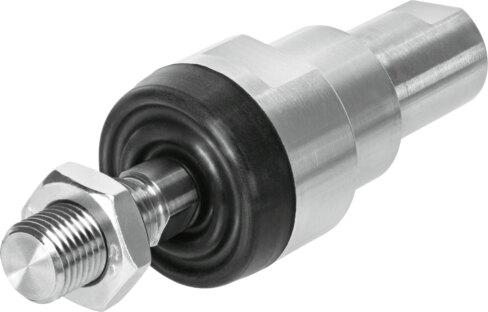

Self-aligning rod coupler CRFK-M10X1,25
The Festo 2305778 is an industrial component featuring an M10x1.25 thread size, a maximum load capacity of 0.9 kN, and a product weight of 230 g. Constructed entirely from high-alloy stainless steel housing, threaded bolts, and nuts with an EPDM cap, the unit provides CRC 4 particularly high corrosion stress resistance, VDMA24364-B2-L LABS conformity, and RoHS compliant materials within an ambient temperature range of -20 °C to 100 °C. This part is suitable for the production of Li-ion batteries subject to restrictions excluding metals with more than 5% by mass of copper, zinc, or nickel with specific material exceptions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2305778
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2305778.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M10x1.25
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -20 °C...100 °C
- Max. load capacity
- 0.9 kN
- Product weight
- 230 g
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Threaded bolt material
- high-alloy stainless steel
- Cap material
- EPDM
- Nut material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2305778. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
