Reference imageConfirm configuration by manufacturer part number.
Festo
2307

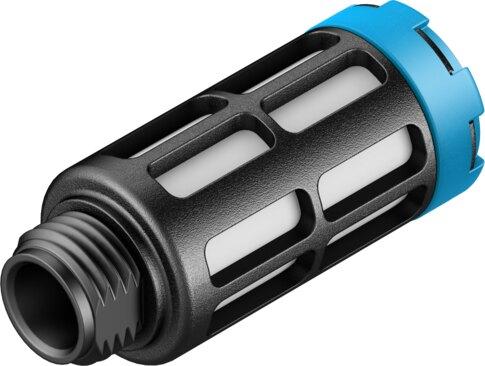

Pneumatic muffler U-1/8
The Festo part number 2307 is an industrial component featuring a G1/8 pneumatic connection, a flow rate of 2000 l/min with respect to the atmosphere, and an operating pressure range from 0 MPa to 1 MPa. Constructed with RoHS-compliant materials and a protective grounding cushioning insert, this 2.3 g unit operates in ambient temperatures between -10 °C and 70 °C with a noise level of 74 dB(A). It supports any mounting position, compressed air operating medium per ISO 8573-1:2010 [7:-:-], lubricated operation, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2307
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2307.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 2000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 74 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 2.3 g
- Pneumatic connection
- G1/8
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2307. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
